bgs digitális multiméter

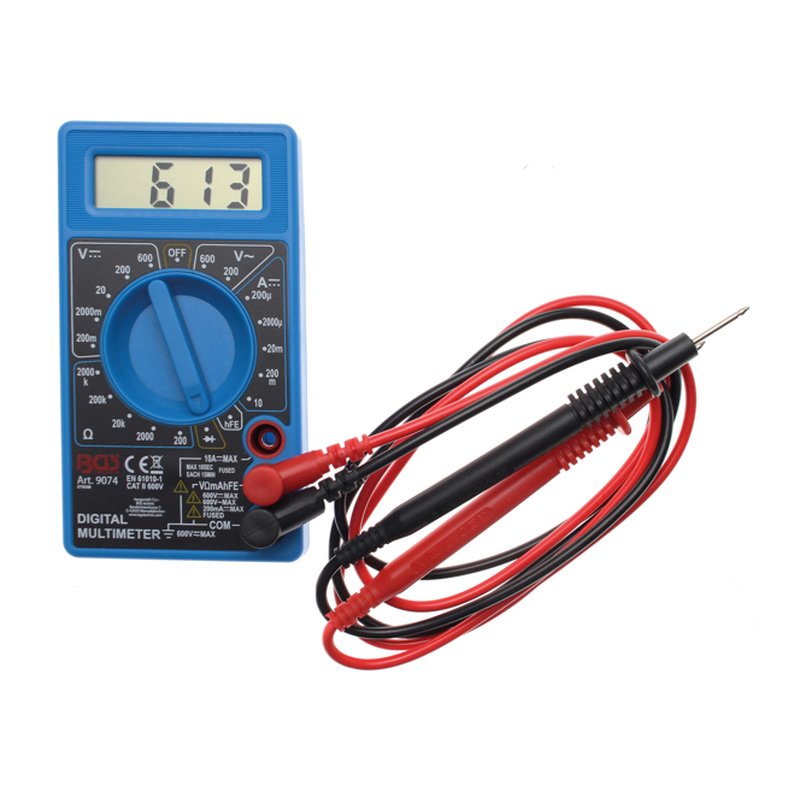

BGS Digital multimeter 3 1/2-digit

• Digital multimeter


• suitable for measurements in the CAT II range


• 3 1/2 digits, 7 segments, 12.5 mm LCD


• Display for overflow, polarity and low battery voltage


• Measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements

DC voltage measuring ranges:

200 mV, resolution 10 µV, accuracy +/- 0.5 % +10 digit

2000 mV, resolution 1 mV, accuracy +/- 1 % +5 digit

20 V, resolution 10 mV, accuracy +/- 1 % +5 digit

200 V, resolution 100 mV, accuracy +/- 1 % +5 Digit

600 V, resolution 1 V, accuracy +/- 1.2 % +5 Digit

AC voltage measuring ranges:

200 V, resolution 10 mV, accuracy +/- 0.5 % +10 digit

600 V, resolution 1 V, accuracy +/- 0.5 % +10 Digit

Direct current measuring ranges:

200 uA, resolution 100 nA, accuracy +/- 1.8 % +2 digit

2000 uA, resolution 1 µA, accuracy +/- 1.8 % +2 digit

20 mA, resolution 10 μA, accuracy +/- 1.8 % +2 digit

200 mA , resolution 100 μA , accuracy +/- 2 % +2 Digit

10 A, resolution 10 mA , accuracy +/- 2 % +10 Digit

Resistance measuring ranges:

200 Ohm, resolution 0.1 mOhm, accuracy +/-1 % +10 Digit

2000 Ohm, resolution 1 Ohm, accuracy +/-2 % +4 Digit

20 KOhm, resolution 10 Ohm, accuracy +/-2 % +4 Digit

200 KOhm, resolution 100 Ohm, accuracy +/-2 % +4 Digit

2000 KOhm, resolution 1 KOhm, accuracy +/-2 % +4 Digit
